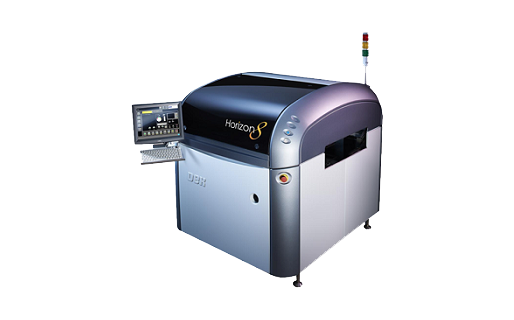

ASM DEK HORIZON 8 Solder Paste Printer
The Horizon 08 offers flexible configurations,
Standard cycle time: 12 seconds + printing time
Camera: DEK HawkEye 750 digital camera with dual-LED illumination
Squeegee adjustment: Motor-controlled with squeegee pressure feedback
Machine alignment accuracy: 2 CpK @ ±12.5µm (±6 Sigma)

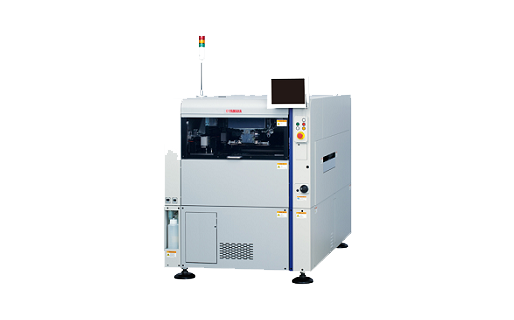

Achieving printing quality equivalent to high-end models, supporting large-sized substrates, and wide-format screens.
Inheriting the functions of high-end machines, realizing high precision and high-quality printing.
Compact body with high versatility, integrating multiple functions into one.
Supporting YAMAHA SMT production line connectivity, achieving efficient production.

The TR7007 SII Plus is the industry's fastest solder paste inspection machine, with a detection speed of up to 200 cm2/sec. High-precision, shadow-free solder paste inspection solution provides full 3D inspection,
with resolutions of 15 µm or 10 µm and a high-precision linear motor platform.
Features include a closed-loop function, enhanced 2D imaging technology, automatic board bend compensation, and stripe light scanning technology.

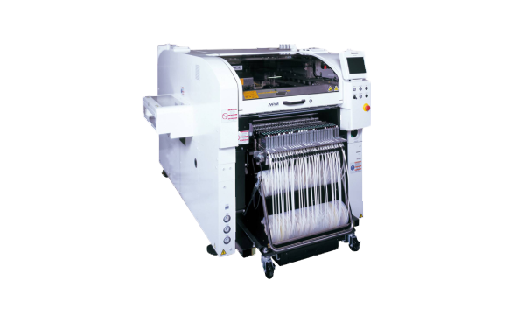

The multifunctional production system offers a choice of 16/12/8/3 types of placement heads, suitable for both high-speed and general-purpose pick-and-place machines.
Maximum support for PCB size extends up to 750*550mm, with an optional dual-track mode.
Achieving an output capacity of up to 84,000 CPH (based on optimal conditions at our headquarters).
Supports component sizes as small as 03015 (metric), with the capability to simultaneously handle up to 120 different components.
The evolution of 16 and 8 placement heads provides a broader range of component compatibility.

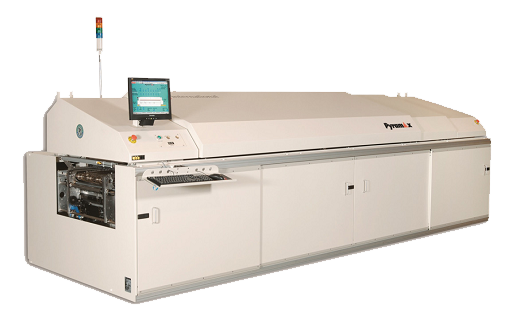

Fully compliant with lead-free processes.

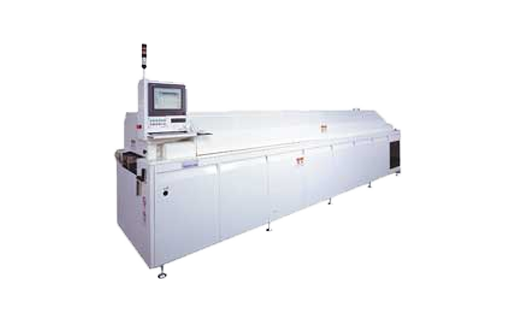

Maximum heating temperature can reach 350°C.
Forced impact convection.
Program-controlled heating and cooling rates.
Edge-to-edge convection circulation.
Low nitrogen and power consumption.
Flexible configuration according to customer needs.
Automatic track width adjustment.
Dynamic nitrogen-saving system.
Product intelligent tracking SMEMA.
WINCON exclusive control software.
Independent electronic over-temperature safety protection system.

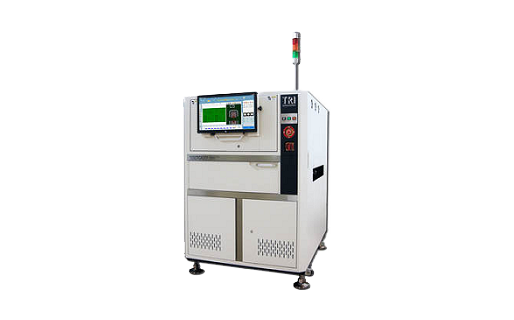

TRI provides a cutting-edge inline AOI solution that offers ultra-fast detection of assembled circuit boards with five high-speed camera lenses. It features reliable defect detection capabilities, capable of identifying even the most complex solder joints and assembly defects.

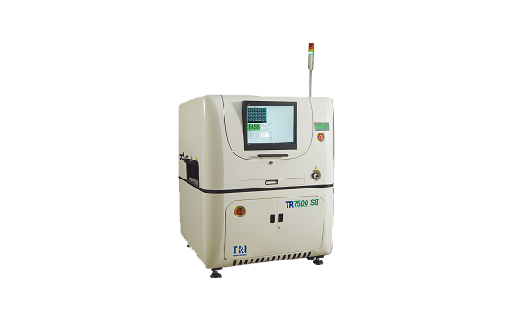

The TR7500 SIII incorporates a powerful combination of intelligent software and high-performance hardware, delivering a reliable and user-friendly AOI solution. The system is dedicated to high-precision detection, minimizing false positives.

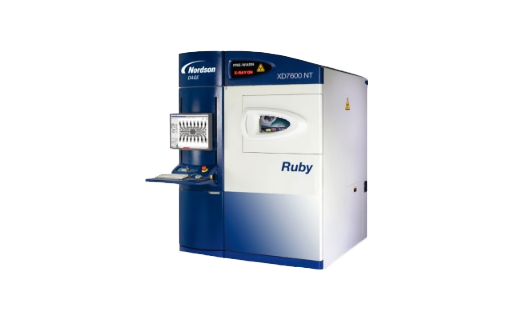

Nordson DAGE Open Tube Transmission X-ray
Features X-ray tube with less than 0.95 μm feature resolution
160 kV tube with a target power of up to 3W, providing sub-micron feature recognition capability
Nordson DAGE 1.33 Mpixel @ 10fps long-life CMOS flat-panel detector (with real-time image enhancement)
Geometric magnification of 1,400X, system magnification of 4,200X
Maximum circuit board size of 29” x 22.8” (736 x 580 mm)
Up to 65° oblique viewing angle without affecting magnification
23” TFT LCD display
Automatic execution of inspection tasks without programming skills required
High-quality real-time imaging
Micro Computed Tomography (μCT) option

Pneumatic Steel Plate Cleaning Machine is designed to prevent solvent ignition due to high temperatures and other factors in the factory area, ensuring the safety of the facility and personnel. It includes warnings for anti-blocking and misoperation.
When used with environmentally friendly solvents, it not only prioritizes safety in the factory but also emphasizes environmental protection.

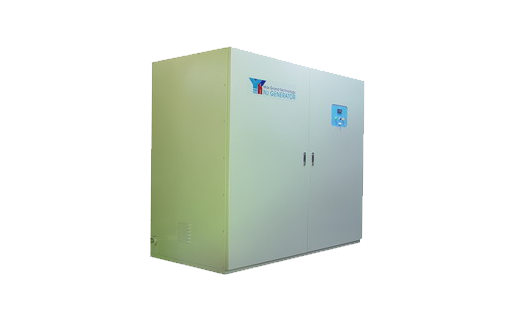

Supplying highly stable, high-purity nitrogen with a purity of over 99.999%.

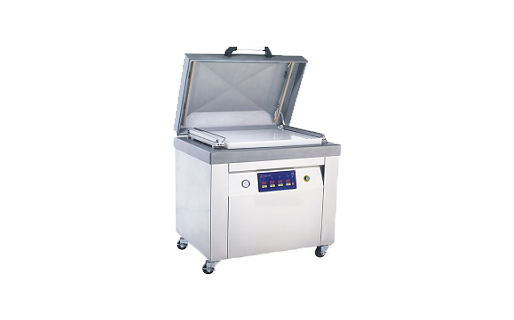

The vacuum packing machine is used to package completed products, preventing electronic components from being affected by moisture, dust, and potential contamination.

Utilizing fast PCB placement positioning, precise BGA placement positioning, and featuring excellent solder consumption quality, it is the equipment with the highest repeatability in reflow soldering temperature.

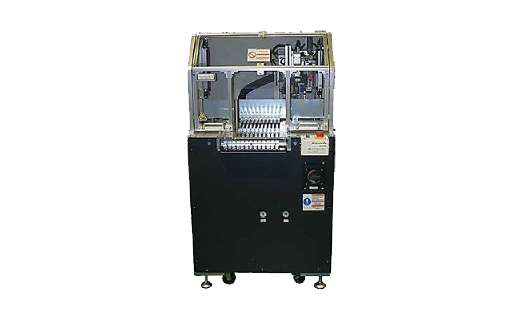

The Panasonic NM-EJW8A Feeder Automatic Correction system enhances the accuracy and reliability of feeder operations, contributing to overall production efficiency. Specifically tailored for Panasonic feeders, it is designed to optimize feeder positioning and streamline the manufacturing process.

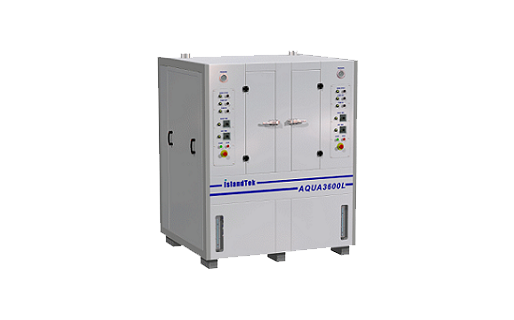

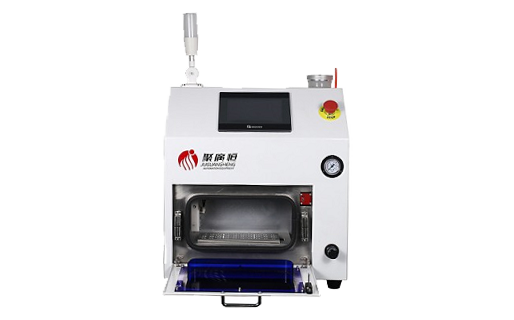

• Streamlined design for an elegant appearance.
• Three nozzles are used to clean 30 nozzles in 10 rows sequentially, achieving high efficiency and energy savings.
• Full-view inspection window for easy maintenance and operation.
• All parts in contact with water are made of 304 stainless steel, rust-proof, corrosion-resistant, sturdy, and stable.
• User-friendly design, one-key start/stop available externally.
• Touchscreen + PLC centralized control for stable performance.
• Easy operation, friendly interface with the option to switch between Chinese and English.
• Equipped with error alarm and emergency braking system, with overload protection.
• Uses industrial purified water (soft water with pH 5-7) or tap water.
• Centralized collection of waste, convenient for maintenance.

Video

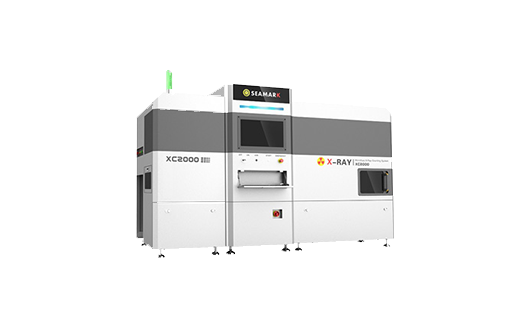

Inline X-RAY component placer, automated component placement to achieve rapid efficiency in production.

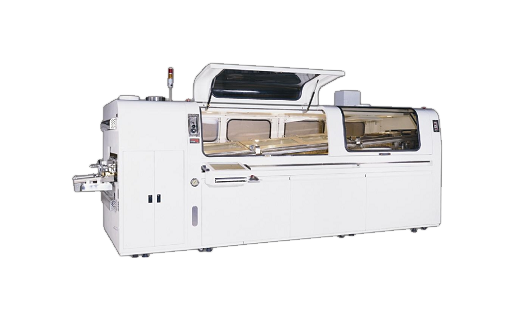

1. Suitable for PCB widths of 350 / 450 / 600 mm. 2. Adjustable conveyor speed range: 0-2800 mm/min. 3. Solder capacity: 450KGS. 4. Conveyor belt motor: 90W 3P 220VAC stepless speed-controlled motor.

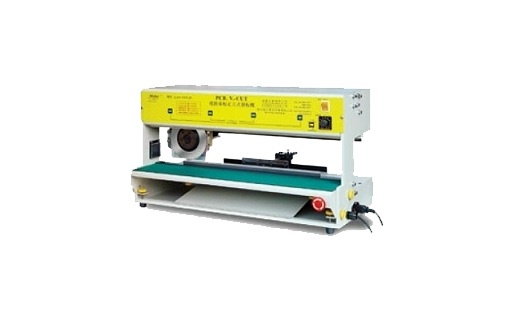

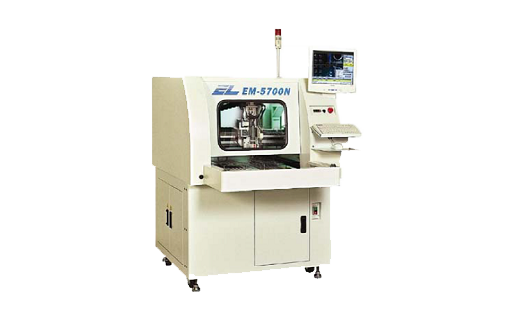

Maximum working area on one side (W*D): 600*620 mm. Working height: 920mm ± 20mm. Cutting speed: 1~100 mm/s. Mechanical repeatability: ± 0.01 mm. Control system: PC-based 3-axis controller.

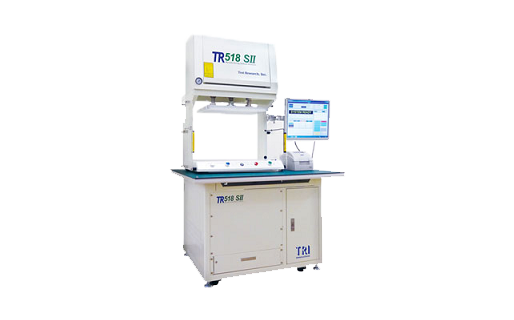

Utilizing the TR518 series platform known for its highest installation rate and reliability, combined with a user-friendly Windows 10 interface that supports USB connectivity for desktop and laptop computers.
It incorporates TestJet technology and other features, offering high-speed, high-precision, and highly reliable testing with up to 2560 points.

Slide table positioning mode: Cylinder positioning dual slide table
Single-side maximum working range (W*D): 600*620 mm
Working height: 920mm±20mm
Cutting speed: 1~100 mm/s
Mechanical repeatability: ±0.01 mm
Control system: PC-based 3-axis controller

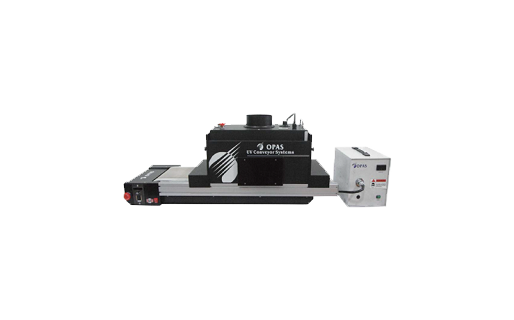

The XLite 8250 series conveyor UV machine has a compact design, making it suitable for UV curing applications.
The lamp height is adjustable, and the LED conveyor speed is displayed for convenient process management.
The body is made of high-temperature-resistant, high-density polytetrafluoroethylene (PTFE) mesh, reducing vibrations during transportation.

5-stage pressure control
Precision of ±0.04mm in punching accuracy
Repeat precision of ±0.02mm

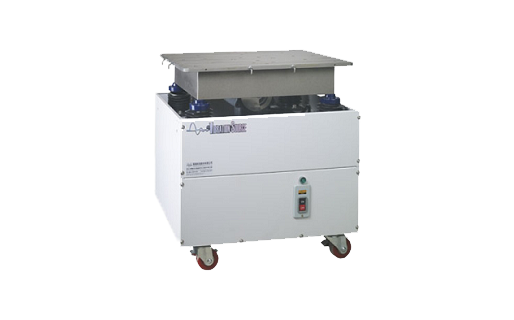

The SMT Vibration Tester simulates real-world conditions and detects potential weaknesses in components.

SMT Ultrasonic Bonder, designed for microelectronic component bonding, offers an efficient and precise assembly process.

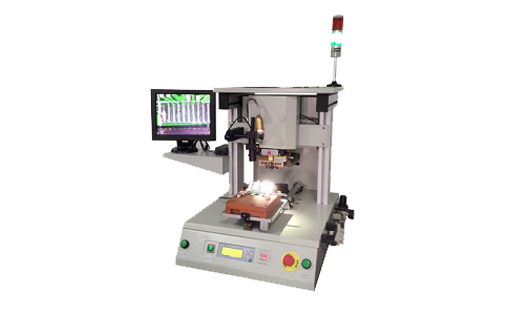

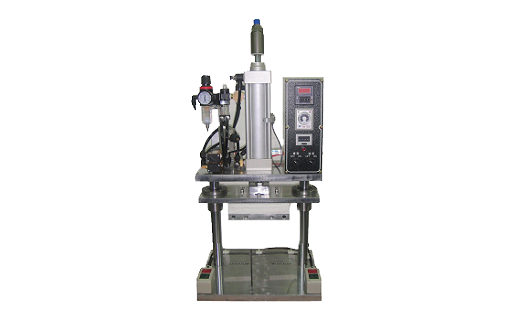

The SMT hot press machine is designed for electronic component bonding, employing high-temperature and high-pressure processes to ensure secure component fixation.

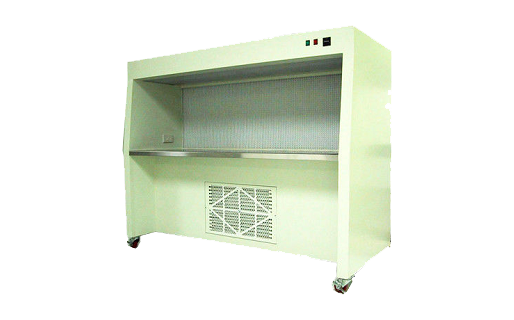

The SMT dust-free and anti-static workbench provide a clean, dust-free working environment, effectively preventing electrostatic interference and ensuring the quality of electronic components.

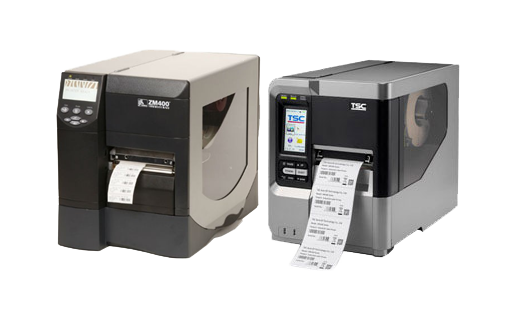

The barcode label printer is one of the essential equipment in the SMT process, efficiently printing barcode labels to achieve accuracy in tracking and product management.

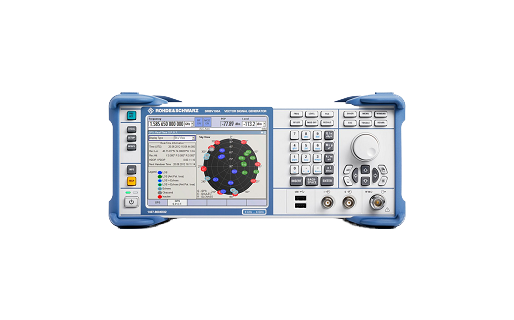

The Vector Signal Generator is a crucial piece of equipment in the SMT process, capable of generating various complex signals for testing and tuning communication devices.

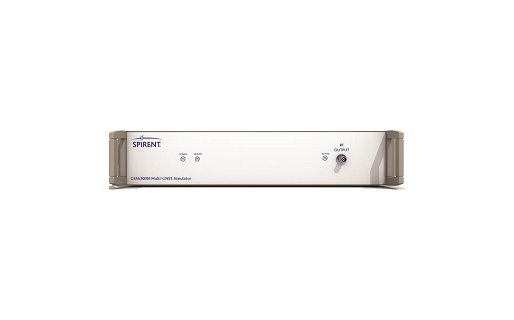

The SPIRENT GPS Simulator (GSS6300M 4CH) is a machine device that can simulate GPS signals to test and verify the performance of positioning and navigation systems.

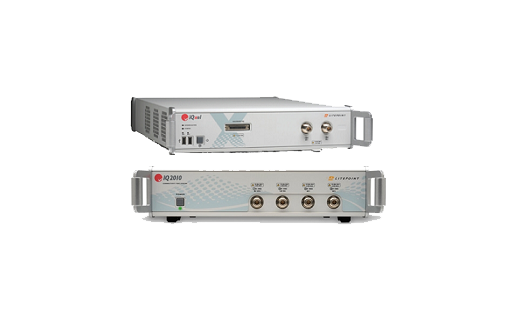

The LitePoint WIFT/BT Tester (IQXEL 160 IQ 2010) is a testing instrument designed for testing and validating Wi-Fi and Bluetooth technologies.
